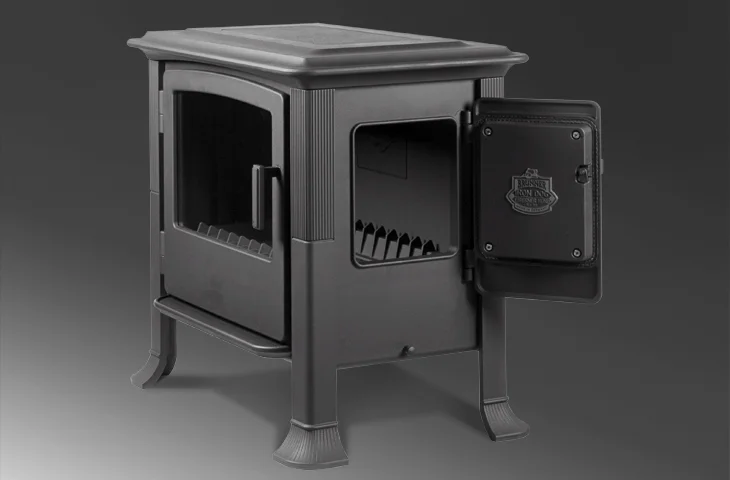

The IRON DOG® is a Swedish stove of a special kind: it is visually sophisticated down to the last detail and impresses with a timeless, simple design that perfectly matches any interior style. The durable IRON DOG® cast iron stoves are available in seven different models.

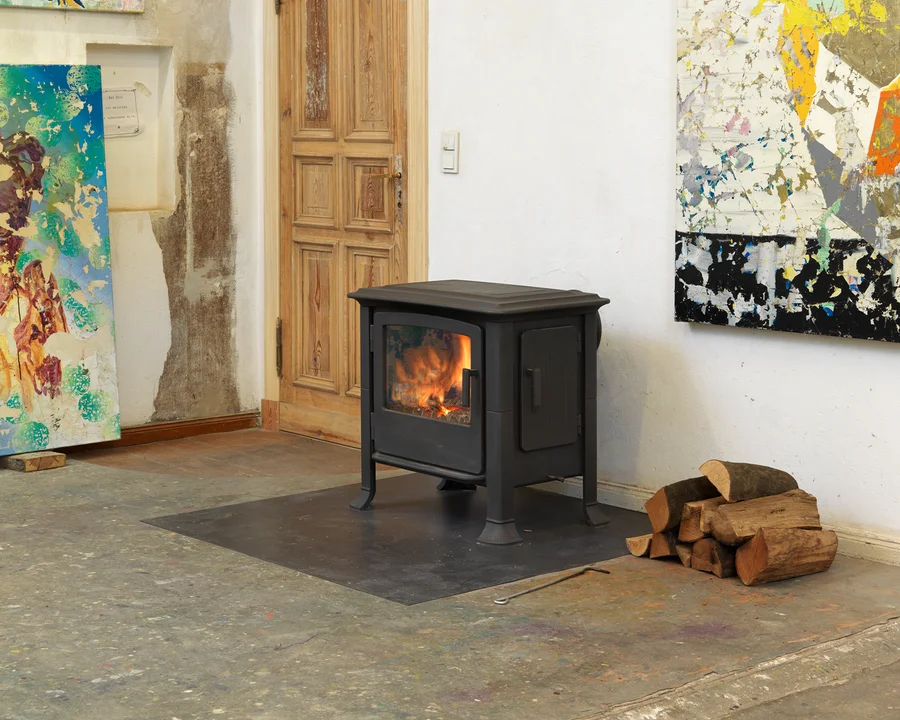

Time, leisure, well-being - it doesn't take much to be happy. With the IRON DOG® N°04, all you need are a few logs and a warm spot by the fire, which becomes a visible attraction thanks to the large panoramic window.
Rated heat power | 7.0 kW |
Consumption/h | 2.0 kg |
Room heat consumption | 60-110 m² |
Efficiency | 82 % |
Device specifications | |
Dimensions (h x w x d) | 760 x 800 x 520 mm |
Pane surface (h x w) | 285 x 450 mm |
Firebox opening (h x w) | 255 x 218 mm |
Flue gas connection | rear |
Flue pipe diameter | 150 mm |
Permitted fuel quantity | 1.5-2.5 kg |
Firebox depth | 600 mm |
Recommended log length | max. 500 mm |
Cast-iron weight | 240 kg |
Air flow and cross-sections | |
Combustion air consumption | 18 m³/h |
Minimum distances | |
to side wall | 600 mm |
to rear wall (without radiant plate) | -. **mm |
to rear wall (with stove radiant plate) | 300 mm |
to rear wall (with stove & wall radiant plate) | 100 mm |
Approvals | EN 13240 |
*Data determined in EN 13240 test with wood stove with horizontal flue pipe connection, pipe length 35 cm
Consult your furnace builder to find the right "Iron Dog" for your home.
