IRON DOG® N°04
A dog with a big heart
Find now a furnace builder

IRON DOG® N°04

With a magnificent large ceramic glass window

The IRON DOG® is a Swedish stove of a special kind: it is visually sophisticated down to the last detail and impresses with a timeless, simple design that perfectly matches any interior style. The durable IRON DOG® cast iron stoves are available in seven different models.

Facts
Data
Cooking plate
Broad Cooking plate for more cooking enjoyment

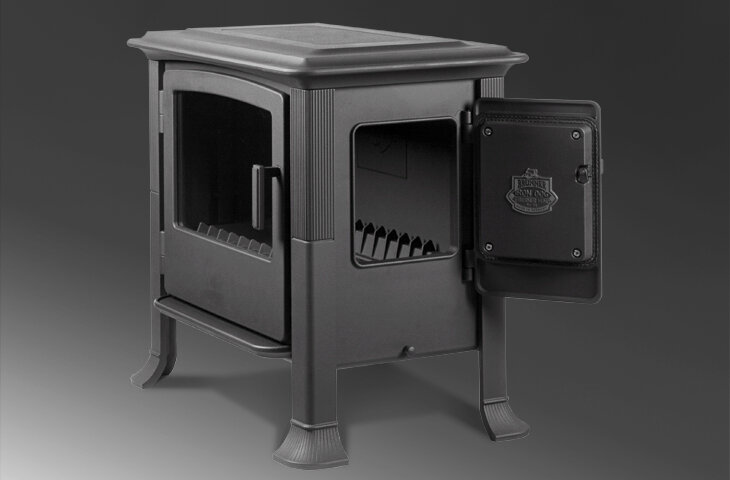

Side door
Extra combustion doog for maximal user comfort
Glass ceramic
Big furnace door with panorama panel
Extra
Cleaning plate consisting of iron cast
Robust
Spacious ash pan consisting of stainless steel
IRON DOG® N°04

Large ceramic viewing glass for maximum fire enjoyment

Time, leisure, well-being - it doesn't take much to be happy. With the IRON DOG® N°04, all you need are a few logs and a warm spot by the fire, which becomes a visible attraction thanks to the large panoramic window.

Learn more
IRON DOG® N°04

Technical specifications

Rated heat power7.0 kW
Consumption/h2.0 kg
Room heat consumption60-110 m²
Efficiency82 %

Device specifications
Dimensions (h x w x d)760 x 800 x 520 mm
Pane surface (h x w)285 x 450 mm
Firebox opening (h x w)255 x 218 mm
Flue gas connectionrear
Flue pipe diameter150 mm
Permitted fuel quantity1.5-2.5 kg
Firebox depth600 mm
Recommended log lengthmax. 500 mm
Cast-iron weight240 kg

Air flow and cross-sections
Combustion air consumption18 m³/h

Minimum distances
to side wall600 mm
to rear wall (without radiant plate)-. **mm
to rear wall (with stove radiant plate)300 mm
to rear wall (with stove & wall radiant plate)100 mm

ApprovalsEN 13240

*Data determined in EN 13240 test with wood stove with horizontal flue pipe connection, pipe length 35 cm



Go to instruction manuals
